Description

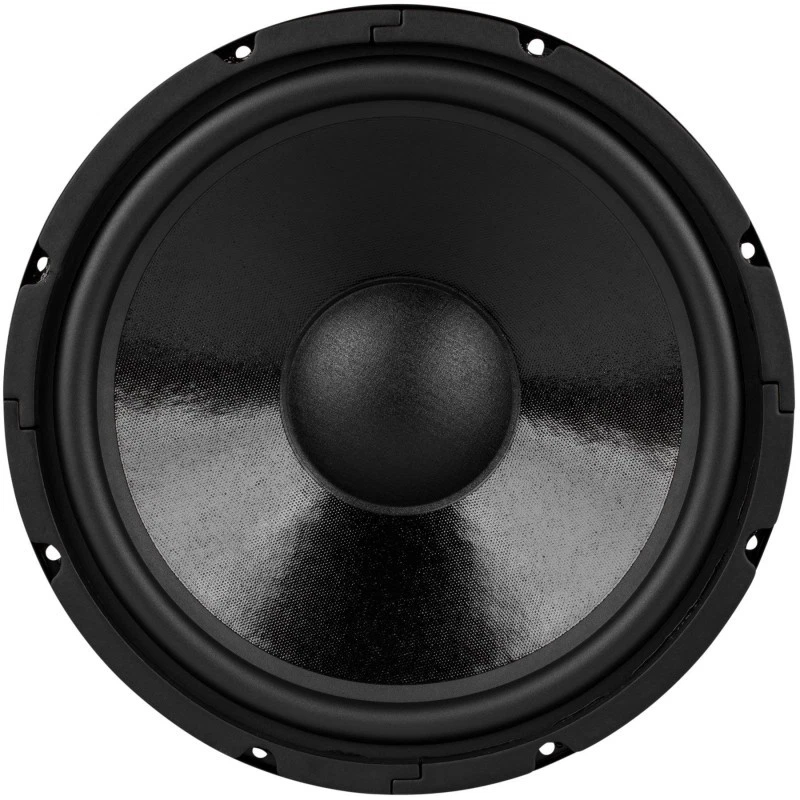

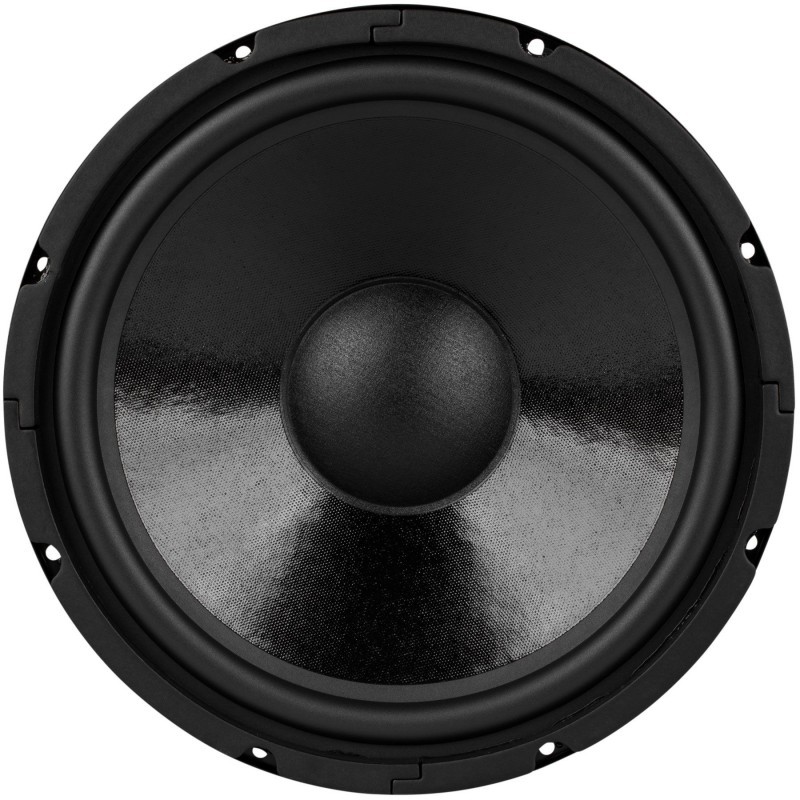

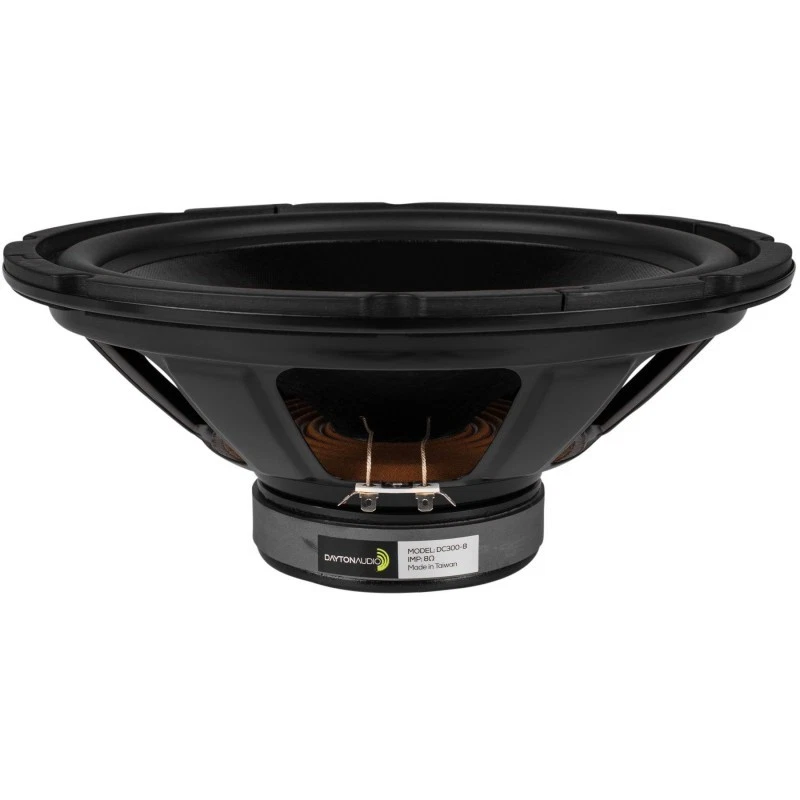

Up for sale is this NEW 12" replacement woofer. Works great in 2-4 systems and as a subwoofer requiring less than 100w RMS. Customers have used this as a replacement with little to no modifications (sometimes new mounting holes,etc) in Nova 8b, DLK2, Fisher XP7S,XP66, ESS lab series, Optimus STS-1000, Cerwin Vega VS-120,AAL, NEC SW400, RSL 3800, Many Pioneer CS-88,CS-77a, KLH and MCS models. Jensen 40, PR-300, Marantz 930, Klipsch KLF-30, Heresy, Boston A100, Norman Labs Model 7, JBL L-112, 1962 fisher console, Scott SP1412, Sound dynamics 12-sce, Altec 1012, Waveform mach 17, Fender Bassman 60, Coral BX-1201, Yamaha NS-1000, BIC-66, 1961 Packard Bell consule, and more (Double check your dimensions before ordering). Price includes shipping to the lower 48 states. Thank you for your purchase. Product Specifications Nominal Diameter 12" Power Handling (RMS) 80 Watts Power Handling (max) 160 Watts Impedance 8 ohms Frequency Response 25 to 2,500 Hz Sensitivity 90.3 dB 2.83V/1m Voice Coil Diameter 2" Magnet Weight 30 oz. Thiele-Small Parameters Resonant Frequency (Fs) 22.9 Hz DC Resistance (Re) 6.8 ohms Voice Coil Inductance (Le) 2.93 mH Mechanical Q (Qms) 3.21 Electromagnetic Q (Qes) 0.37 Total Q (Qts) 0.33 Compliance Equivalent Volume (Vas) 6.41 ft.³ Mechanical Compliance of Suspension (Cms) 0.48 mm/N BL Product (BL) 16.3 Tm Diaphragm Mass Inc. Airload (Mms) 100.7g Maximum Linear Excursion (Xmax) 4.3 mm Surface Area of Cone (Sd) 498.8 cm² Materials of Construction Cone Material Treated Paper Surround Material Rubber Voice Coil Wire Material Copper Voice Coil Former Aluminum Basket / Frame Material Steel Magnet Material Ferrite Mounting Information Overall Outside Diameter 12.07" Baffle Cutout Diameter 11" Depth 5.18" Diagonal hole to hole measurement: 11.5" # Mounting Holes 8 Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion) Sealed Volume 1.47 ft.³ Sealed F3 52 Hz Vented Volume 4.58 ft.³ Any questions, please ask me. Shipping is FREE to the US lower 48 states. Thank You for your purchase. DC300-8 I accept Pay Pal for payments. Please contact me if you can not pay through pay pal. Payment is due within 4 days of the auctions end via Ebay's Terms. I will only ship to your pay pal confirmed shipping address, unless you have contacted me before hand and I have agreed to do otherwise. Typically items are shipped within 1-2 business days after the payment has been cleared unless otherwise noted. Shipping insurance is included in the cost of shipping with items above $50. Items are typically shipped via fedex or USPS priority mail. Please contact me for a shipping quote to your location if you are are in PR,HI,Alaska or for an international quote before you make a purchase. I take pride in packaging my items, and use proper packaging and confidence that it is shipped properly. Payment is due within 4 days of the auction's end. This is Ebay's payment policy and terms. No Returns are accepted for items delivered as Described. If you receive the wrong item, or an item that is damaged, I will make it right with a replacement or return. All items sold to California will be charged 8.75% to the sale price (not shipping). This is state law to collect sales tax in CA.. Items shipped internationally are marked as 'other/merchandise'. I take pride in my business, and look forward to shipping your item. Thank YOU! High5electronics has been selling and distributing quality products for the last 6 years. We pride ourselves in our business and taking care of our customers. We are certain that you will be satisfied with your product and our service. For any questions or concerns feel free to contact me through ebay. Thank You for your purchase.
